XGSun UHF RFID Label w/ARC Certification for 76*20 size
Product Details

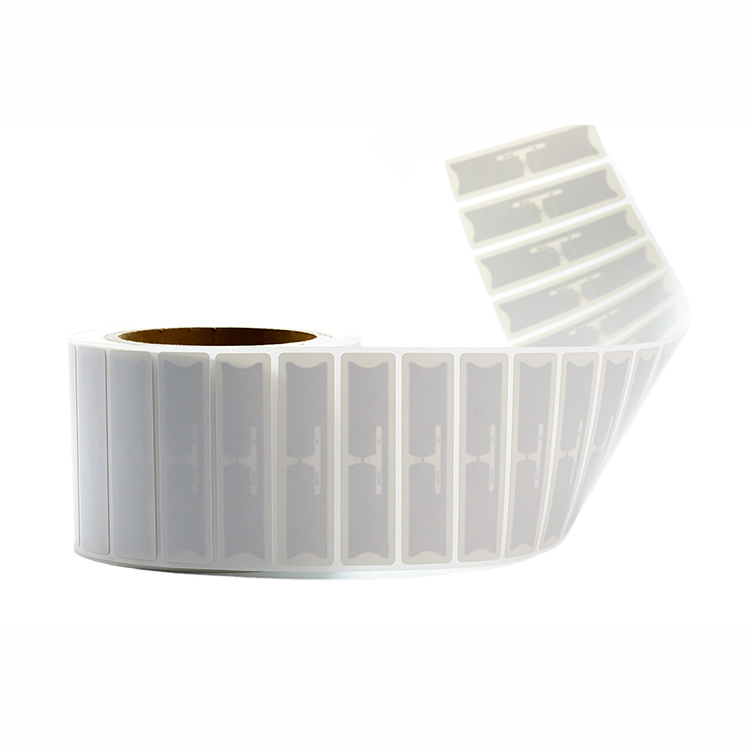

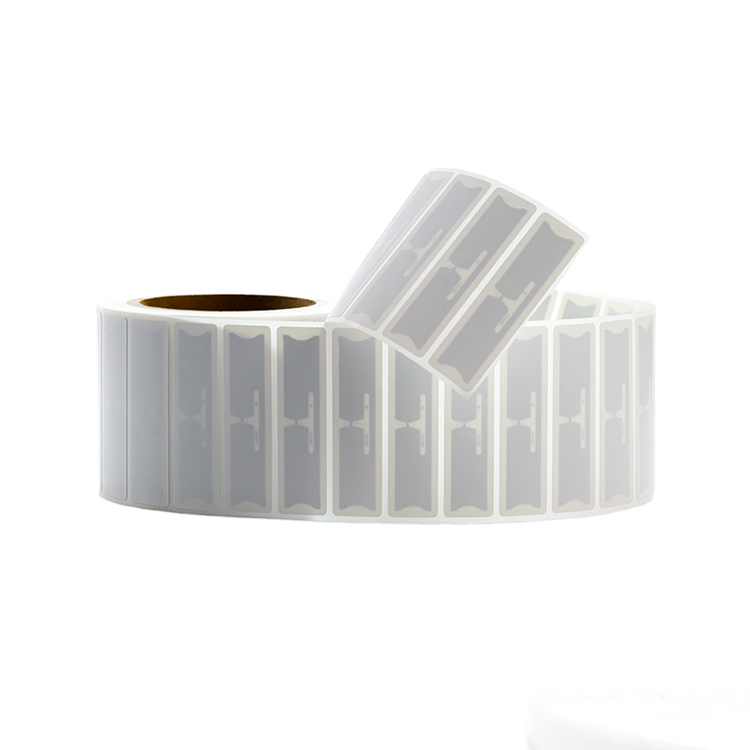

The ARC program is a certification for high-quality RFID performance inlays originating from the Auburn University RFID Laboratory. Currently, ARC certification has become the entry threshold for RFID projects for world’s leading apparel brands. The RFID labels stickers produced by XGSun use AD-334 RFID inlay. It is usually affixed to shoe boxes or used with 83*25mm size clothing RFID hang tags.
| Product Model: | L0760202601U | |||||||||
| RFID Chip: | Impinj M750 | |||||||||
| Label Size: | 76mm*20mm | |||||||||
| Antenna Size: | 70.0mm*14.5mm | |||||||||
| Face Material: | Art-Paper, PET，PP synthetic paper & Other Customize Face Material | |||||||||
| Protocol: | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 | |||||||||
| Memory: | 48 bits TID, 96 bits EPC, 0 bit User Memory | |||||||||
| Applications: | Apparel & Footwear, Retail, Healthcare, General purpose | |||||||||
| Key Benefits: | Fast reading, Multi-reading, Traceability | |||||||||
Customized services Details
| Customizable Label Size: | Yes | |||||||||
| Printing: | Thermal transfer printing, Silk Screen Printing and other custom printing. | |||||||||
| Data initialization: | Encoding | |||||||||
Storage Environment Requirements
| Operating Temperature/Humidity: | -0～60℃ / 20%～80% RH | |||||||||
| Storage Temperature/Humidity: | 20～30℃ / 20%～60% RH | |||||||||
| Shelf Life: | 1 year in anti-static bag at 20～30℃ / 20% ～60% RH | |||||||||
| ESD Voltage Immunity: | 2 kV (HBM) | |||||||||
| Bending Diameter: | ＞ 50mm | |||||||||
| Other application environment requirements: | Your environmental requirements for RFID labels will affect our selection and design of labels. For example, if you are going to apply RFID labels to special environments: high temperature & low temperature environment; high acid & high alkaline environment, please inform our product design team that we will customize unique RFID products for you within 3 working days. | |||||||||
